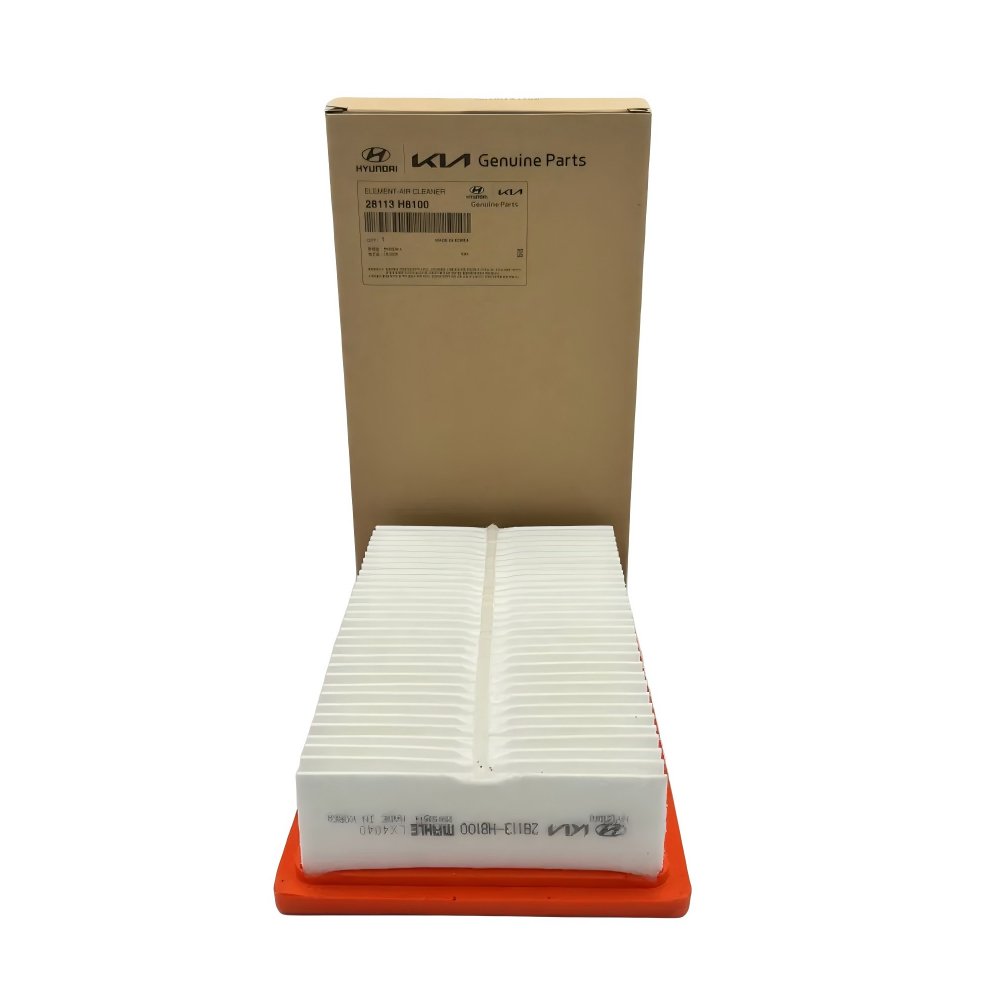

Product Name: Engine Air Filter / Air Cleaner Element
OEM Part Number: 28113-H8100 (28113-H9100)
Product Type: Panel Air Filter
Key Specifications :
Length: 255 mm (10.03 in)
Width: 146 mm (5.75 in)
Height: 54 mm (2.13 in)
Weight: approx. 0.16 kg
Filter Media: high-quality cellulose / non-woven fabric / synthetic fibers (depending on brand)
Frame: robust frame with heat-resistant sealing gasket for leak‑proof installation
Optional: washable cotton gauze variants available for performance applications
OEM Cross‑References & Equivalent Part Numbers :
The 28113-H8100 is interchangeable with the following OE and aftermarket numbers:
Hyundai / Kia OE: 28113-H9100
Hengst: E1598L
Mahle / Knecht: LX4040
Bosch: F026400634
Fram: CA12633
WIX: WA10835
Febi Bilstein: 184009
Comline / Blue Print: AMC KA-1660 / ADG022165
Premium Guard: PA99485
Many other brands offer equivalent filters – always verify fitment with your vehicle VIN.
Applicable Vehicles :
This filter is designed for the following Hyundai and Kia models (fitment may vary by market and engine, please check VIN):
Hyundai Accent (2018–2022)
Hyundai Solaris Saloon (Russia/EU, 2017–2022)
Hyundai Creta / Cantus (select markets)
Kia Rio IV (YB, SC) – 2017–2023
Kia Rio IV Saloon (SC, FB)
Kia Stonic (YB)
Installation & Maintenance Tips:
Inspect every 10,000–15,000 km or at least once a year; replace more frequently in dusty environments.
Do not wash or blow out the filter unless it is a specifically designed washable type.
Clean the airbox housing before installing the new filter.
Ensure the sealing gasket sits evenly and that the airflow arrow (if marked) points toward the engine.
